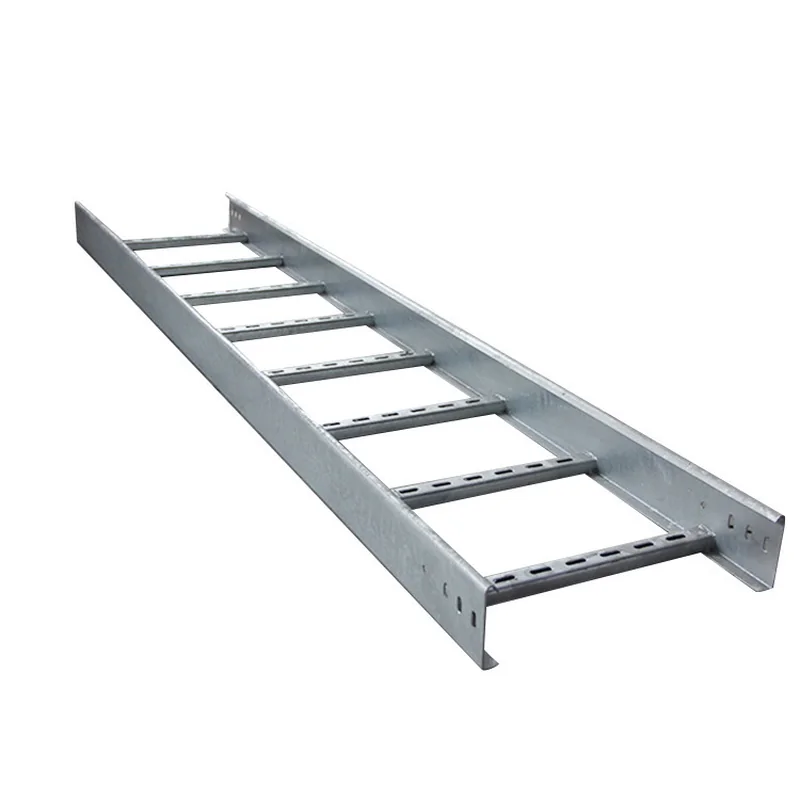

Ladder Cable Tray Systems for Heavy-Duty Power Cable Support
Engineered for high-load and long-span applications, ladder cable trays provide superior structural strength and maximum ventilation, making them ideal for medium- and high-voltage power cables.
System Role in Cable Management
1. Maximum ventilation for power cable heat dissipation
2. High load capacity for heavy industrial cable systems
3. Long span design reducing support structure requirements
4. Suitable for oil & gas, power plants and infrastructure projects
5. Multiple surface treatments for harsh environments
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Structural Configuration | Side rail type | C-channel / I-beam profile (depending on load class) |
| Rung type | Tubular / perforated flat rung | |
| Rung spacing | 150–300 mm | |
| Design applications | Maximum ventilation / heavy-duty cable support / long-span installation | |
| Dimensions | Width | 100–1000 mm |
| Side rail height | 50–200 mm | |
| Standard length | 2000 / 3000 / 6000 mm | |
| Side rail thickness | 1.5–3.0 mm | |
| Rung thickness | 1.2–2.5 mm | |
| Load Performance | Compliance standard | IEC 61537 |
| Test span | 3.0–6.0 m | |
| Deflection limit | L/200 | |
| Medium-duty safe working load | 150–300 kg/m | |
| Heavy-duty safe working load | 300–600 kg/m | |
| Corrosion Protection | Available finishes | Hot-dip galvanized (HDG) / Pre-galvanized (GI) / Powder coating / Stainless steel |
| Compliance | IEC standards / CE requirements / NEMA VE1 and NEMA FG1 (upon request) | |
| Ingress Protection | IP rating | IP00—open structure |
| System Compatibility | Compatible components | Full range of fittings, supports, and accessories |
Detail Display

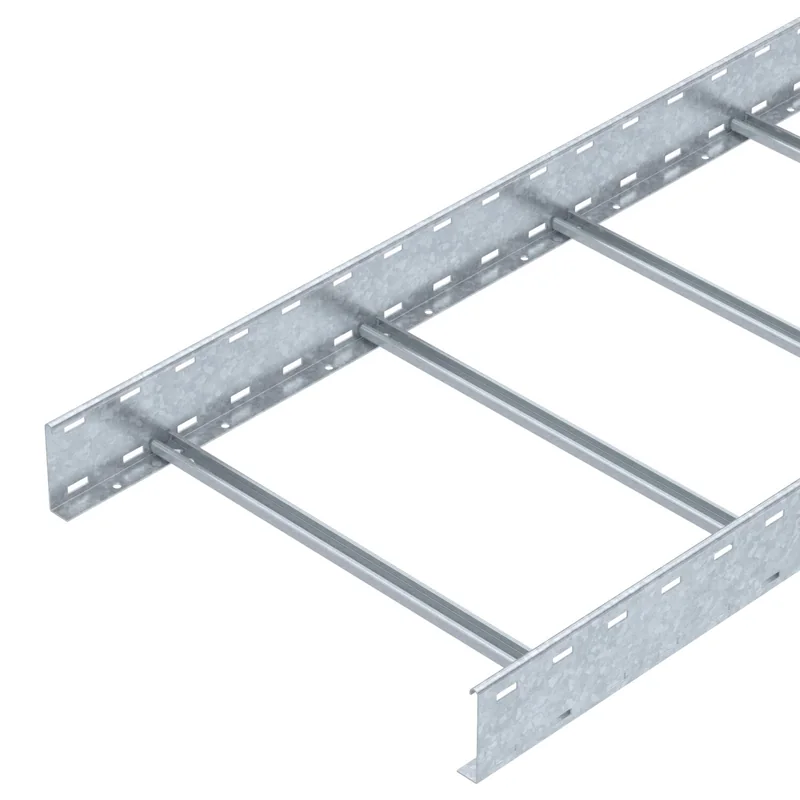

Heavy Duty Power Cable Ladder System
Designed for high-current power transmission systems with large cable volume and heavy load requirements.
Typical Configuration
Width: 400–1000 mm
Height: 150–200 mm
Rung spacing: 250–300 mm
Thickness: 2.0–3.0 mm
Span: 3–6 m
Typical Applications
Power Plants | Substations | Steel Mills | Cement Plants
Why This System
Handles large cross-section power cables → Prevent structural deformation
Supports long-distance routing → Suitable for main cable corridors
High thermal dissipation → Avoid overheating in high-current systems

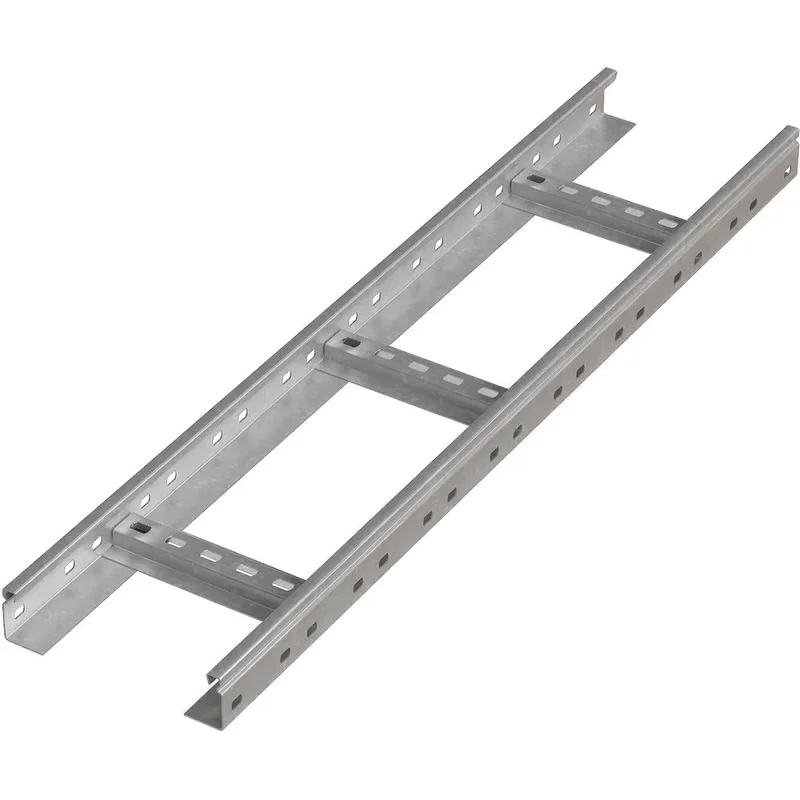

Long Span Cable Ladder System (Structural Optimized Type)
Engineered for projects requiring extended support spacing to reduce steel structure and installation cost.
Typical Configuration
Span: 4–6 m
Height: 150–200 mm
Reinforced side rails
Optional: return flange design
Typical Applications
Infrastructure | Industrial Plants | Pipe Racks | Outdoor Installations
Why This System
Reduce number of supports → Lower steel consumption
Faster installation → Fewer support points
Ideal for elevated structures → Pipe racks / corridors

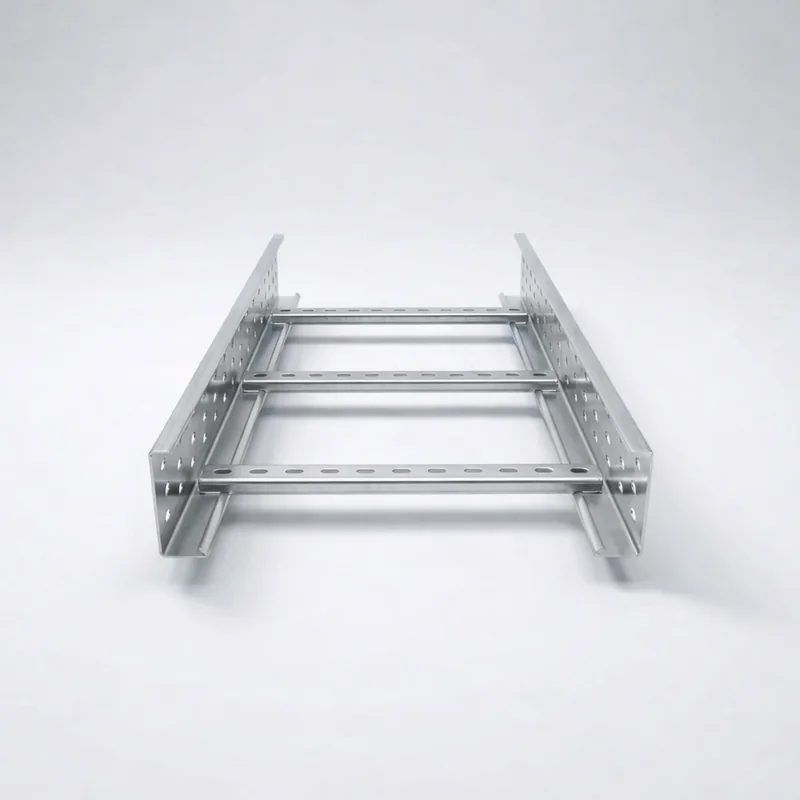

Corrosion-Resistant Cable Ladder System
Designed for aggressive environments where corrosion resistance is critical.
Material Options
Hot-dip galvanized (HDG – high coating thickness)
Stainless Steel (SS304 / SS316L)
Typical Applications
Oil & Gas | Petrochemical | Coastal Areas | Offshore Platforms
Why This System
Withstands C4–C5 environments → Long-term durability
Reduces maintenance frequency → Lower lifecycle cost
Suitable for harsh outdoor exposure

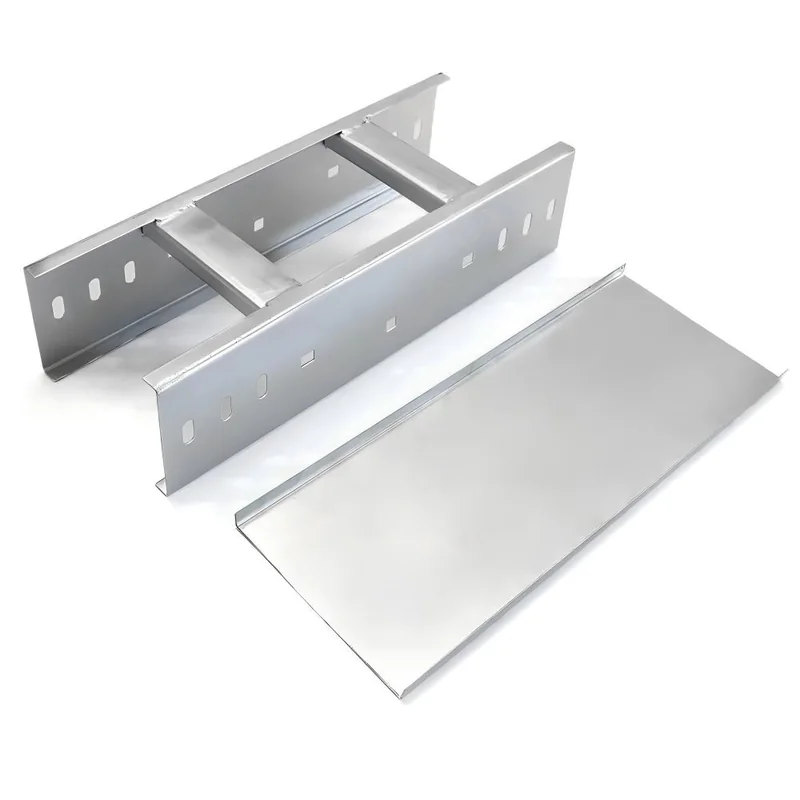

Tunnel & Infrastructure Cable Ladder System
Specialized system for confined environments requiring fire safety, durability, and easy maintenance.
Typical Configuration
Height: 100–150 mm
Anti-corrosion coating
Fire-resistant options available
Typical Applications
Tunnels | Metro Systems | Railways | Underground Facilities
Why This System
Organized cable routing in confined space
Easy inspection and maintenance access
Compatible with fire protection systems
Medium Duty General Industrial Ladder System
Balanced solution for medium-load industrial applications where ladder system is preferred over tray.
Typical Configuration
Width: 200–600 mm
Height: 100–150 mm
Thickness: 1.5–2.0 mm
Typical Applications
Manufacturing Plants | Machinery Facilities | General Industry
Why This System
Better ventilation than tray → Suitable for power cables
Lower cost than heavy-duty systems
Flexible installation across different areas
Vertical & Shaft Cable Ladder System
Designed for vertical cable routing in shafts and risers.
Typical Configuration
Narrow width: 100–400 mm
Special fixing brackets
High structural stability
Typical Applications
High-rise Buildings | Industrial Shafts | Utility Risers
Why This System
Secure vertical cable support → Prevent cable slipping
Space-efficient → Suitable for narrow shafts
Easy integration with building structure
Core Problem-Solving Advantages
1. Solve Heavy Cable Load and Long-Span Installation Challenges
- High load capacity: Designed for heavy-duty power cables
- Long span capability: Reduce support points and steel structure cost
- Strong structural rigidity: Ideal for large-scale industrial projects
2. Maximize Cable Ventilation and Heat Dissipation
- Open ladder structure: Provides maximum natural airflow
- Prevent heat accumulation: Suitable for high-current power cables
- Extend cable service life: Reduce overheating risks
3. Reduce Installation and Structural Costs
- Fewer supports required: Lower installation material cost
- Faster installation: Simple structure with easy alignment
- Lower total project cost: Optimized for large-scale projects
Ladder → Power plants / oil & gas / heavy industry
ENGINEERING SUPPORT

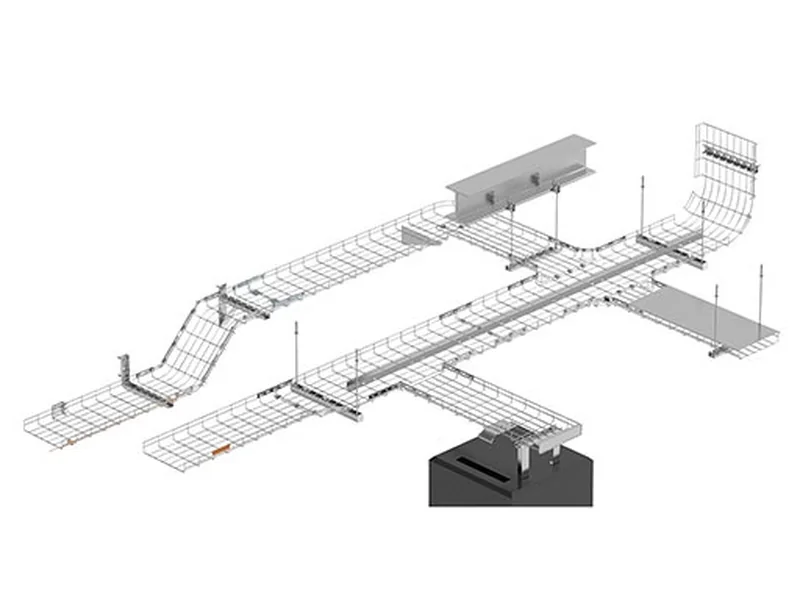

Frequent changes → Wire Mesh Heavy power cables → Ladder General routing → Perforated Protection / clean → Solid Bottom
| System | Load | Ventilation | Protection | Cost |
| Wire Mesh | Low | High | Low | Low |
| Perforated | Medium | Medium | Medium | Medium |
| Ladder | High | High | Medium | High |
| Solid Bottom | Medium | Low | High | High |
