Solid Bottom Cable Tray Systems for Enclosed and Protected Cable Routing
Solid bottom cable tray systems providing superior protection for control, instrumentation and communication cables.
1. Fully enclosed structure protecting cables from dust and damage
2. Reduced electromagnetic interference for control systems
3. Suitable for sensitive instrumentation cables
4. Available with covers for enhanced environmental protection
5. Durable materials for indoor and outdoor installations
Technical Specifications

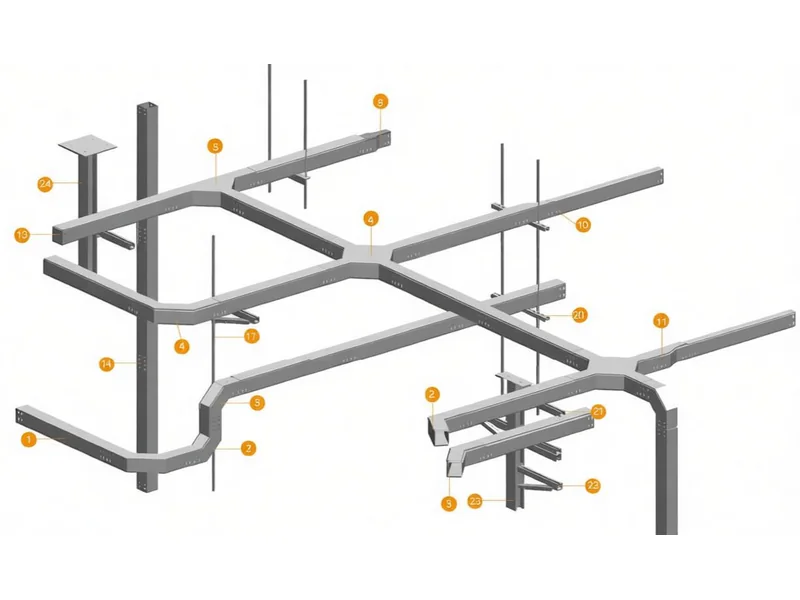

| Category | Parameter | Specification |
|---|---|---|
| Structural Configuration | Structure | Fully enclosed rectangular cable duct system |
| Cover type | Removable cover—clip-on or screw-fixed | |
| Design applications | Cable protection / optional electromagnetic shielding / clean and organized cable routing | |
| Dimensions | Width | 50–1000 mm |
| Height | 50–300 mm | |
| Standard length | 2000 / 3000 mm | |
| Material thickness | 0.8–2.5 mm | |
| Load Performance | Compliance standard | IEC 61537 |
| Test span | 1.5–2.5 m | |
| Deflection limit | L/200 | |
| Light-duty safe working load | 50–120 kg/m | |
| Medium-duty safe working load | 120–250 kg/m | |
| Corrosion Protection | Available finishes | Pre-galvanized (GI) / Powder coating / Hot-dip galvanized (HDG) / Stainless steel |
| Compliance | IEC standards / CE requirements / NEMA 12 or NEMA 1 (depending on enclosure type) | |
| Ingress Protection | Standard with cover | IP40 |
| Optional gasket sealing | IP54 | |
| System Compatibility | Compatible components | Full range of fittings, supports, and accessories |
Clean & Enclosed Cable Protection System
Designed for environments requiring dust control, cleanliness, and cable protection.
Typical Configuration
Fully enclosed structure
Width: 100–600 mm
Optional gasket sealing
Typical Applications
Hospitals | Pharmaceutical Plants | Clean Rooms | Laboratories
Why This System
Prevent dust and contamination → Protect sensitive systems
Enclosed routing → Maintain clean environment standards
Easy cleaning → Suitable for hygienic requirements
EMI-Sensitive Cable Routing System
Used for environments where signal stability and electromagnetic protection are critical.
Typical Configuration
Steel Solid Bottom Cable Tray tight cover
Optional grounding design
Typical Applications
Control Rooms | Instrumentation Systems | Communication Networks
Why This System
Reduce electromagnetic interference → Improve signal reliability
Shield sensitive cables → Prevent data loss
Stable system operation → Critical for automation systems
Architectural & Exposed Cable Management System
Designed for visible installations where appearance and organization are important.
Typical Configuration
Powder-coated finish
Color customization available
Typical Applications
Commercial Buildings | Offices | Public Areas | Airports
Why This System
Clean visual appearance → Improve project aesthetics
Concealed cable routing → No visible cable clutter
Customizable design → Match architectural requirements
Heavy Protection Industrial Solid Bottom Cable Tray System
Engineered for environments where cables require strong mechanical protection.
Typical Configuration
Thickness: 1.5–2.5 mm
Reinforced cover structure
Typical Applications
Factories | Industrial Plants | Equipment Areas
Why This System
Protect cables from impact → Suitable for harsh environments
Prevent mechanical damage → Improve safety
Durable structure → Long service life
Core Problem-Solving Advantages
1. Effectively Solve Electromagnetic Interference (EMI) Issues
- Enclosed structure: Reduces external electromagnetic interference
- Stable signal transmission: Ideal for control and data cables
- Suitable for sensitive systems: Instrumentation and communication lines
2. Provide Superior Cable Protection
- Fully enclosed design: Protects against dust, moisture, and contaminants
- Mechanical protection: Prevents impact, compression, and external damage
- Safer cable operation: Reduce failure risks
3. Enhance Project Appearance and Standardization
- Clean cable layout: Fully concealed cable routing
- Professional appearance: Ideal for commercial and public buildings
- Standardized installation: Improves overall project quality
Solid Bottom Cable Tray → Commercial buildings / clean environments
ENGINEERING SUPPORT

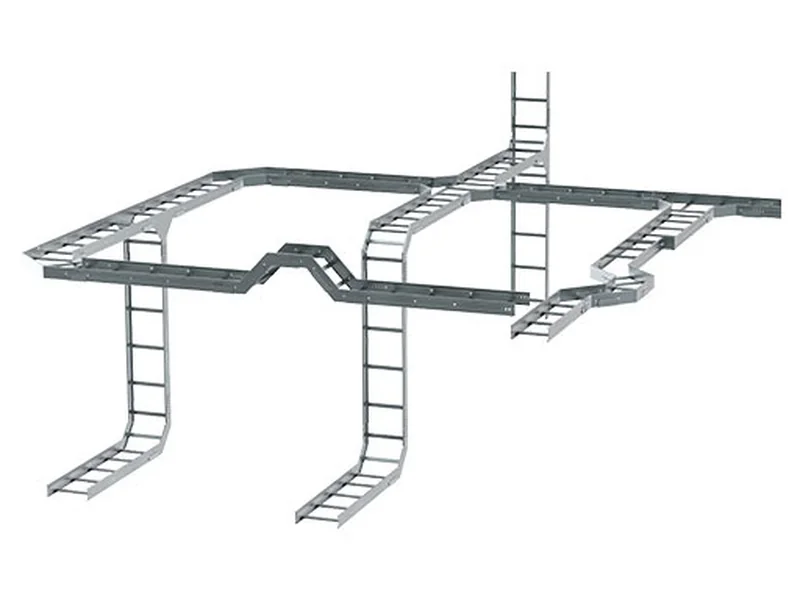

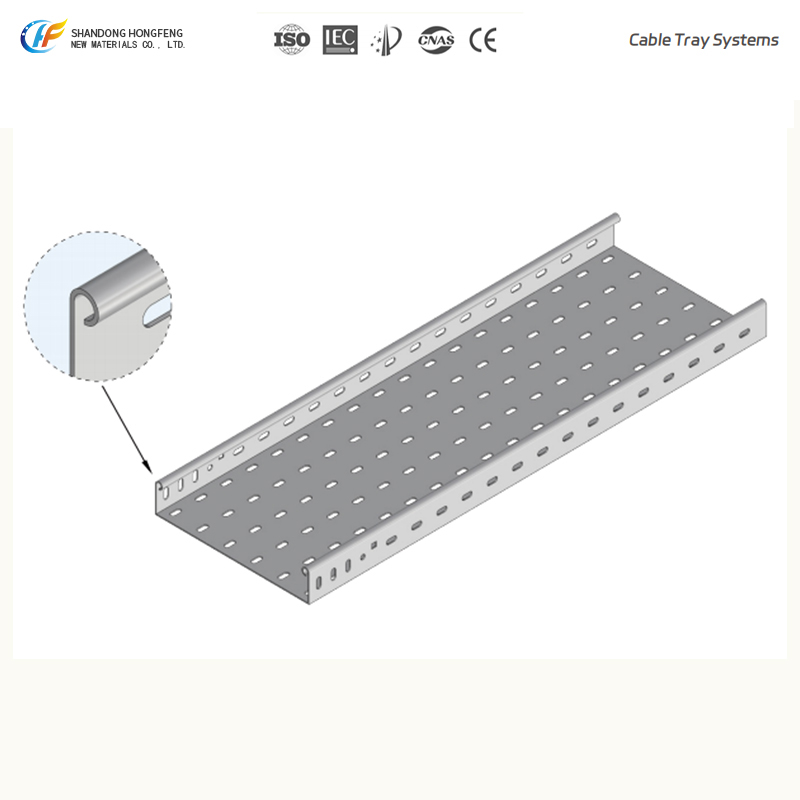

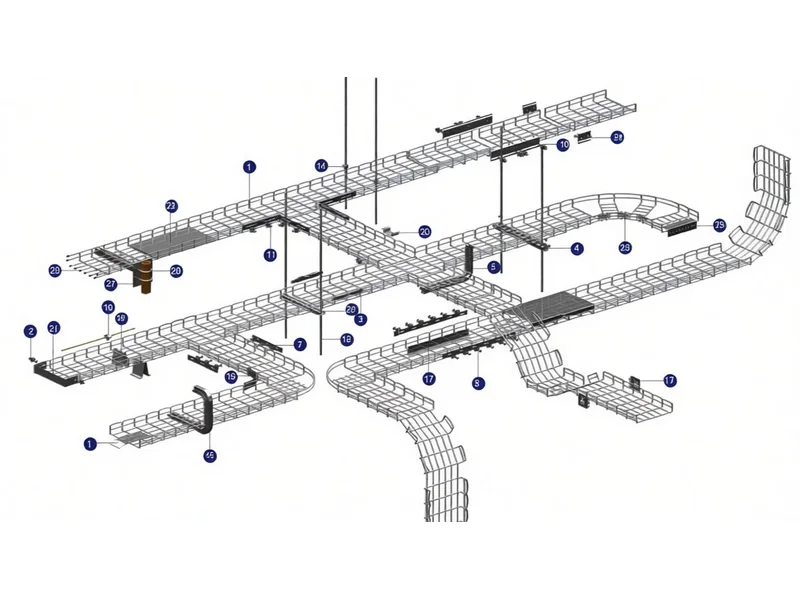

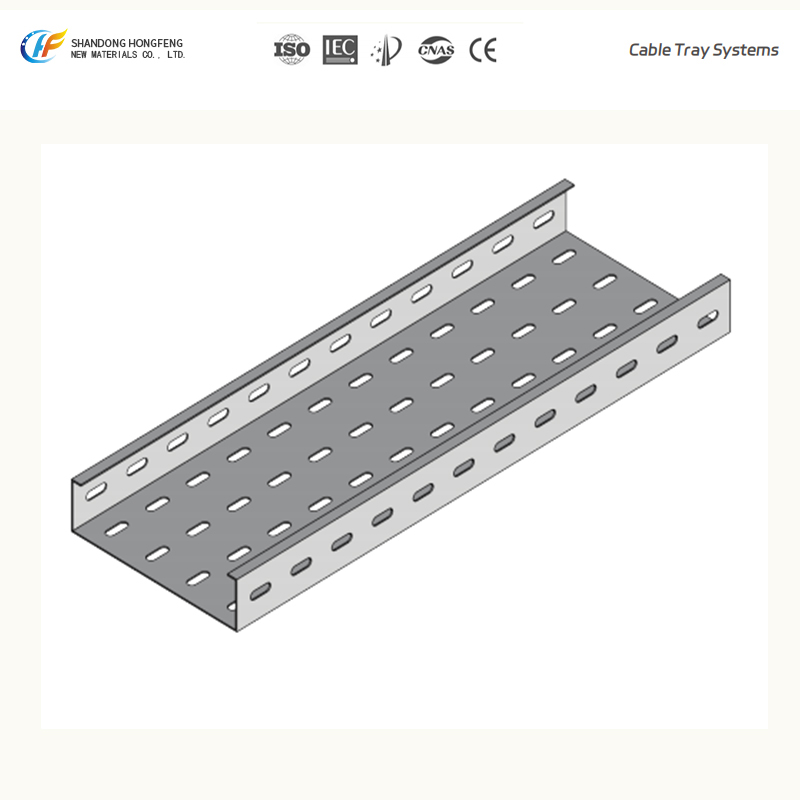

Frequent changes → Wire Mesh Heavy power cables → Ladder General routing → Perforated Protection / clean → Solid Bottom
| System | Load | Ventilation | Protection | Cost |
| Wire Mesh | Low | High | Low | Low |
| Perforated | Medium | Medium | Medium | Medium |
| Ladder | High | High | Medium | High |
| Solid Bottom | Medium | Low | High | High |
